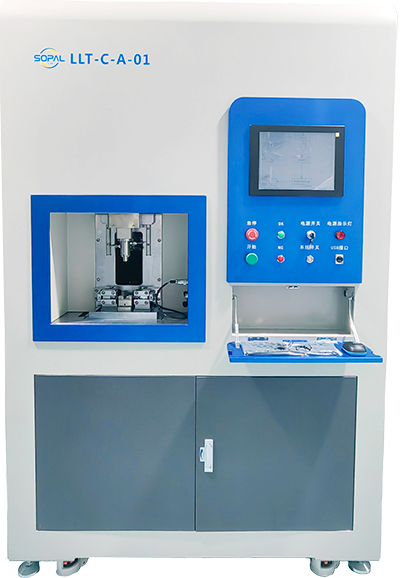

1. Dynamic Flow Adjuster (Liquid version)

The equipment is using self-developed liquid constant pressure device, automated measurement and adjustment system, to precisely measure and adjust the dynamic flow rate of metering valve. Based on the input target flow rate, combined with the dedicated control algorithm, automatically adjust the dynamic flow rate of the solenoid valve to the target value and determine whether it is qualified.

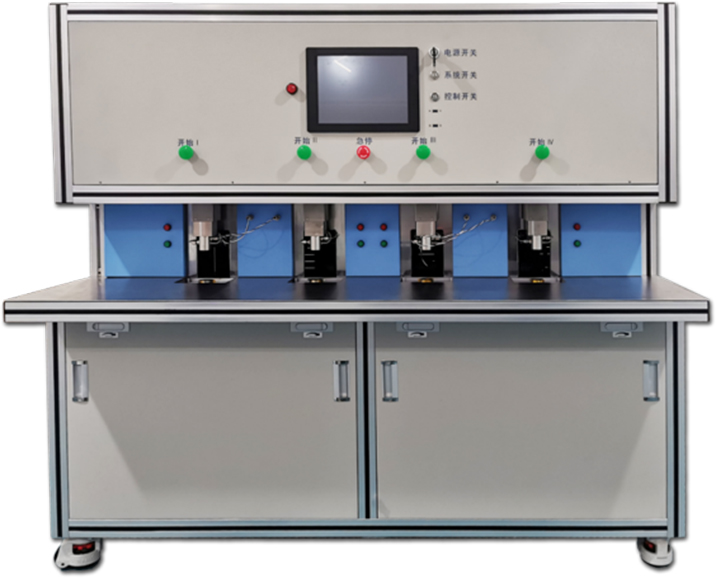

The single-station dynamic flow regulator is used to adjust the dynamic flow parameters of the solenoid in the R&D and trial production process. The equipment can be expanded to multi-station production equipment according to customer needs.

Technical indexs:

1. Test medium: special test liquid;

2. Test pressure: 100KPa ~ 500KPa (can be customized);

3. Flow measurement range: customized;

4. Flow measurement resolution: 0.01g;

2. Dynamic Flow Adjuster (Gas version)

The equipment is using self-developed gas constant pressure device, automated measurement and adjustment system, to precisely measure and adjust the dynamic flow rate of metering valve. Based on the input target flow rate, combined with the dedicated control algorithm, automatically adjust the dynamic flow rate of the solenoid valve to the target value and determine whether it is qualified.

The single-station dynamic flow regulator is used to adjust the dynamic flow parameters of the solenoid in the R&D and trial production process. The equipment can be expanded to multi-station production equipment according to customer needs.

Technical indexs:

1. Test medium: compressed air;

2. Test pressure: 100KPa ~ 500KPa (can be customized);

3. Flow measurement range: customized;

4. Flow measurement resolution: 0.01SLM;
