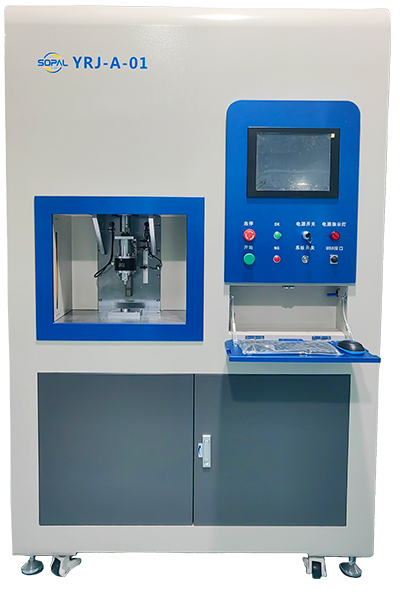

Intelligent Servo Press Fitting Machine

The equipment is used for press fit assembly of parts and components with requirements for assembly position and force value. It can press the parts into the set position, detect the pressing force in real time during the press fit process, determine whether the pressing force is within the qualified range, and display the force position curve.

Technical indexs:

1. Feeding and blanking: manual;

2. Station Quantity: 1;

3. Effective press stroke: 50mm;

4. Max. pressuse: 3000N (speed ≤5mm/s);

5. Max. speed: 100mm/s;

6. Respeated positioning accuracy: ±0.02mm;

7. Press fit parameters: settable, can be saved and accessed;

8. Press fit method: monitor the pressing force during the process with the overpressure protection, analy the pressure displacement curve during the process and judge whether the press fit is qualified;

9. Cycle time: 6~10s/piece;

10. Machine weight: 300kg;

11. Number of operators: 1 person;
