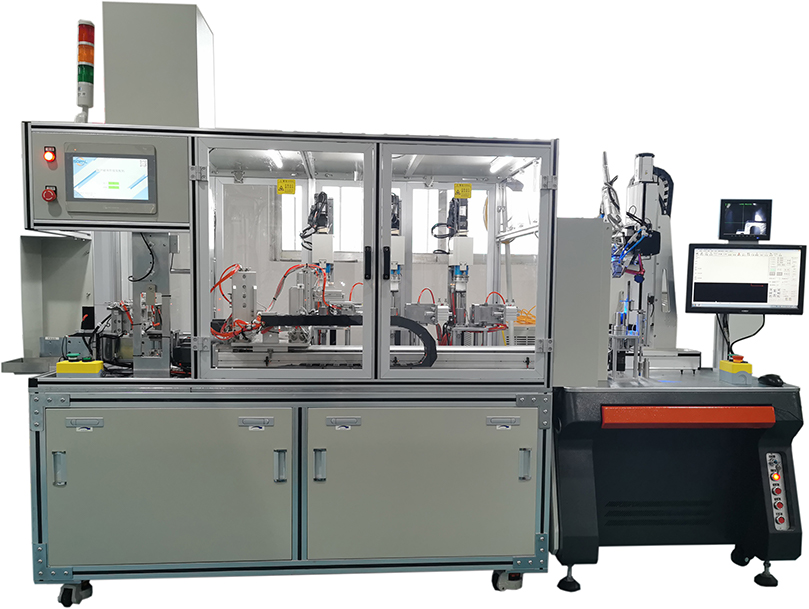

Valve Pulse Adjuster

The equipment is used in the final critical stage of expansion valve assembly, the opening pulse is precisely adjusted and then automatically pressed to form the finished expansion valve.

It is used for automatically adjusting the valve opening pulse of the air conditioning electronic expansion valve. After manual feeding, the automatic adjustment program is initiated, and the machine automatically completes the pre switching valve and step adjustment of the expansion valve. After reaching the valve opening pulse point, it automatically presses the shell and can edit the valve opening action after pressing the shell.

Technical indexs:

1. Feeding and blanking: manual;

2. Flow measurement range: 250L/min;

3. Flow measurement resolution: 0.01L/min;

4. Minimum modulation: 1 pulse;

5. Cycle time: ≤ 9.5s/piece;

6. Equipment weight: 950kg;

7. Number of operators: 1 person;
