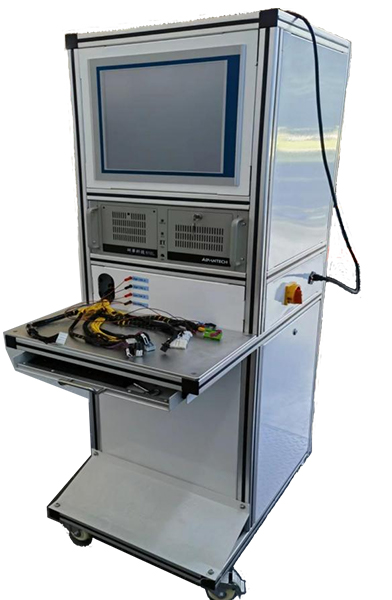

BCM Test Equipment

The equipment is used for the testing of hardware function detection and logic analysis of the products, such as BCM, PEPS, GATEWAY, SSB, ESCL, etc.

The test system has two modes: automatic test and munual test. Automatic testing has the characteristics of simple operation and high stability. Manual testing can be used for the product logic analysis and single function detection.

The system is based on Windows 7 & 32-bit, and the software platform is based on C++ Builder2010. The PC selects the industrial control computer, the hareware detection and control unit select the PCI interface board, wihich with higer controllability and more stable performance.

Technical indexs:

1. Size: 580mm(L) x 900mm(W)  x 1750mm(H);

2. Working temperature: -20°C ~ +50°C;

3. Operating voltage: AC550V±10%;

4. Weight: 168kg;
