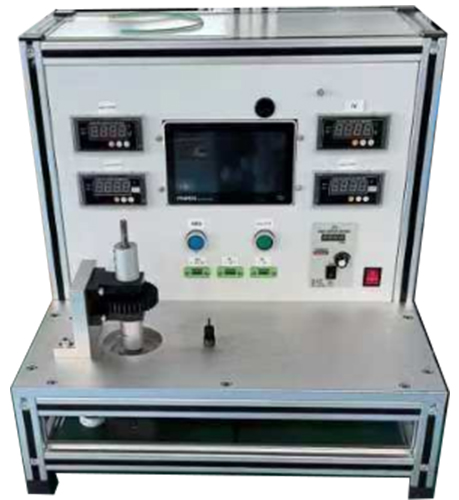

Sensor Tester

The equipment is used for testing the output voltage, resistance and current of the throttle sensor and in take pressure sensor.

The oscilloscope can display the waveform mode, amplitude and suty cycle of the crankshaft sensor, camshaft sensor and ABS sensor, with a rel-time sampling rate of up to 1GSa/S and a 100MHz*2 analog bandwidth. Meand while it has complete trigger function (simgle/normal/automatic).

Technical indexs:

1. Size: 550mm(L) x 550mm(W)  x 500mm(H);

2. Power input voltage: AC220V;

3. Motor power: 60W;

4. Output voltage and current: one set of 12V, two sets of 5V;
