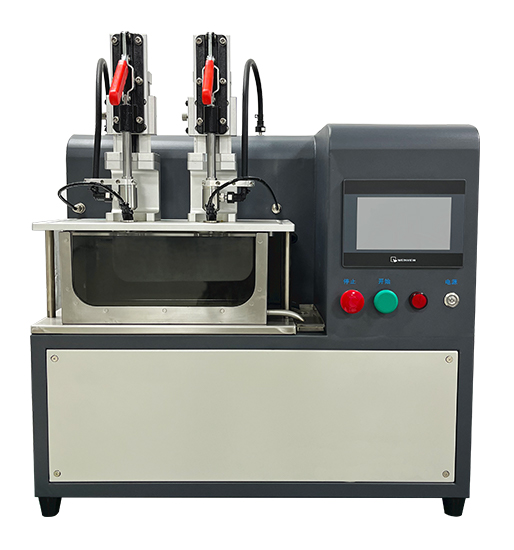

Flow Comparison Tester

The equipment is a small, easy-to-use, and intuitive injector flow measurement instrument, used to quickly compare the flow errors between the standard injectors and the tested injector. It is very suitable for automotive service stations, repair shops, suppliers and other occasions.

Technical indexs:

1. Pressure range: 200~400KPa (± 5KPa);

2. Driving voltage range: 5-30V;

3. Maximum driving current: 5A;

4. Flow range: 50~300g/min, 20~400g/min;

5. Measurement accuracy: ± 5%, ± 3%;

6. Data interface: RS485-;

7. Power supply voltage: AC220V;

8. Power: 250W;
