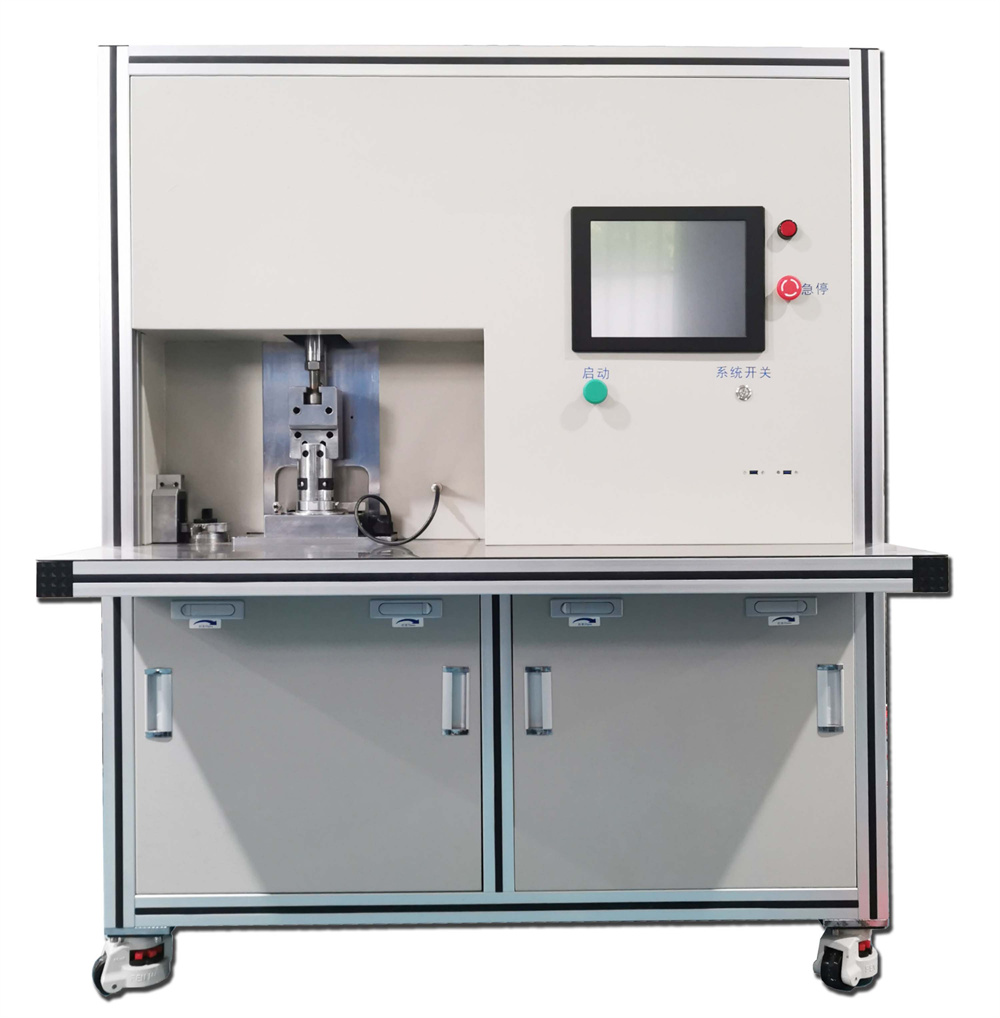

Bidirectional Pressure Difference Meter

The equipment is used for Automatically measuring the maximum operating pressure difference of the electronic expansion valve. After manually inserting the parts, the equipment automatically executes the measurement, impact process and calculates the flow difference. It can be used to measure the performance of the expansion valve during research and development, inspection and other processes. Automatically measure the maximum operating pressure difference in both directions and generate data that can be stored in a spreadsheet file.

Technical indexs:

1. Feeding and blanking: manual;

2. Test pressure: 0.1MPa ~ 0.5MPa;

3. High pressure impact pressure: 1~5MPa;

4. Flow measurement range: 250L/min;

5. Flow measurement resolution: 0.01L/min;

6. Reversing method: manual;

7. Excitation mode: single-phase and 1-2 phases options are available;

8. Number of operators: 1 person;
