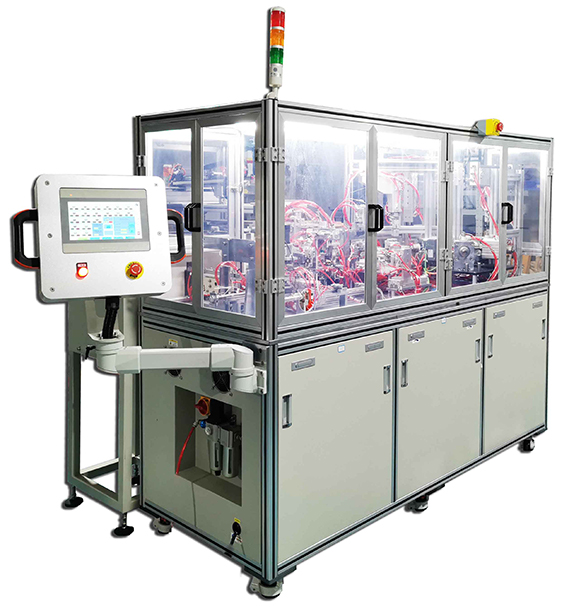

Internal Positioning Sleeve Automatic Assembly Machine

The equipment is used to assemble the internal positioning sleeve components, which can automatically assemble and rivet more than ten small parts of the components (multiple springs, hooks, spiral tubes, etc.) according to the process sequence, and automatically discharge.

This technology can be widely used in the precision assembly of all kinds of special-shaped small parts of refrigeration valves.

Technical indexs:

1. Feeding and blanking: vibrating tray+spring swing tray for loading, swing tray for discharging;

2. Power: cylinders, electric cylinders, motors, etc;

3. Tightening method: riveting;

4. Production cycle: ≤ 9.5/s per piece;

5. Equipment weight: 1250kg;

6. Number of operators: 1 person;
